Description
📅 Last updated: March 2026 · Reviewed by ESD Control Specialist

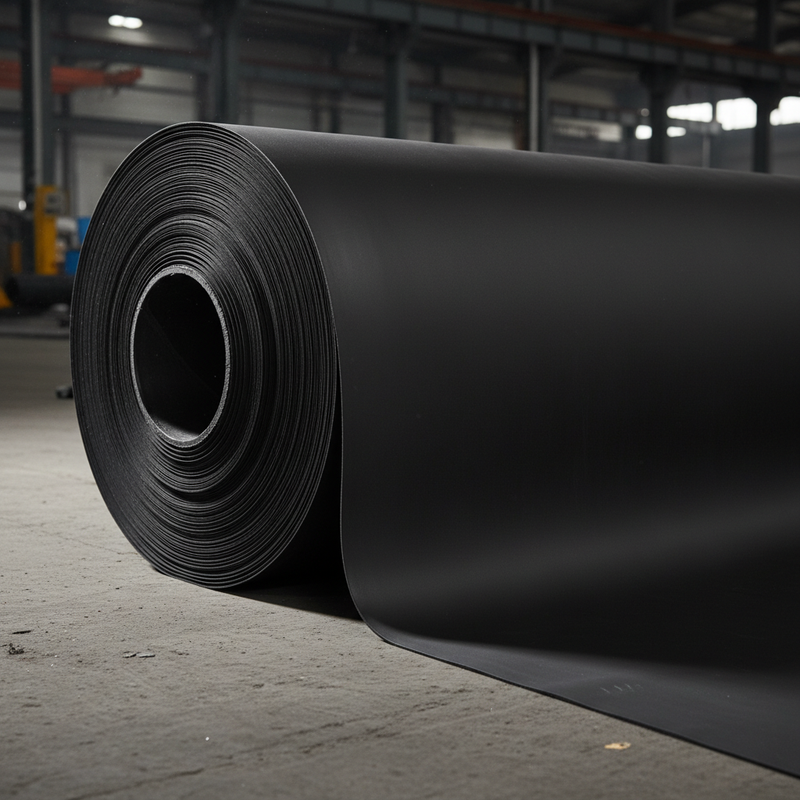

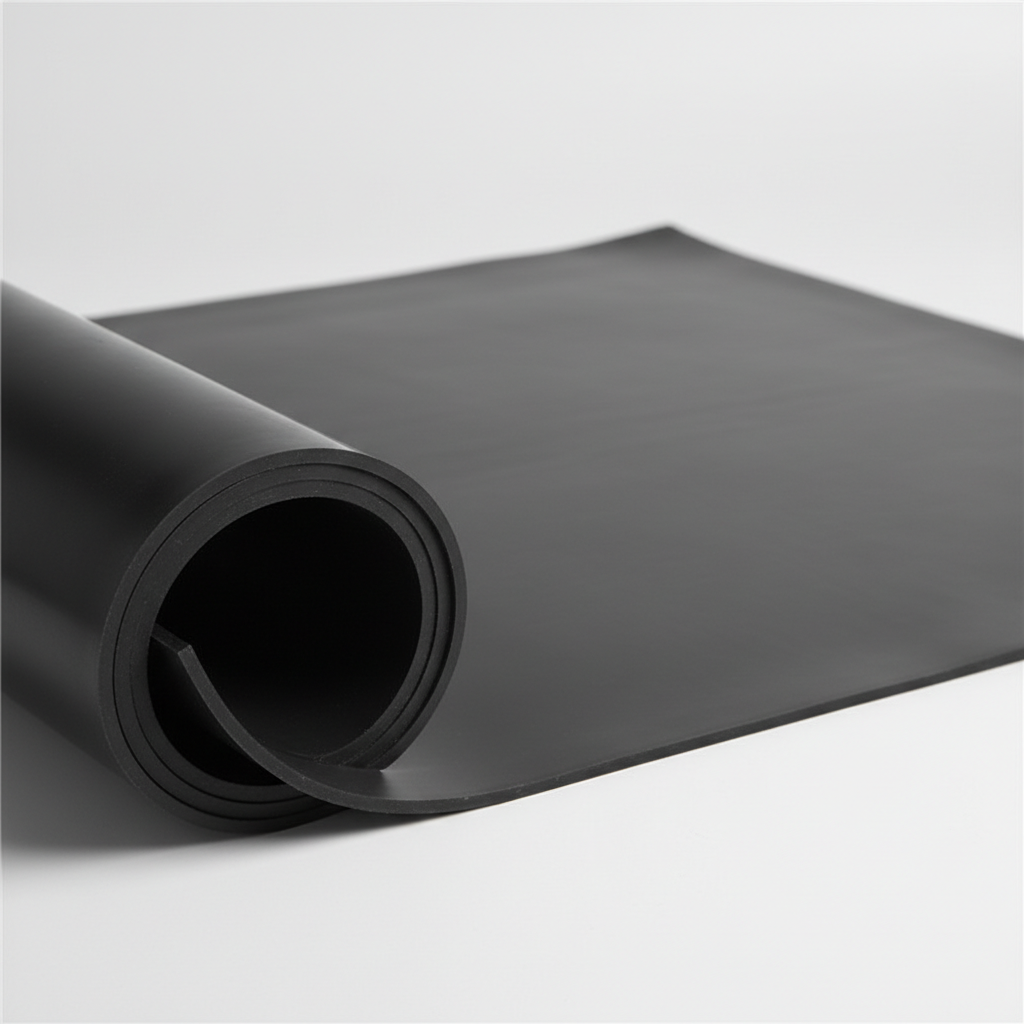

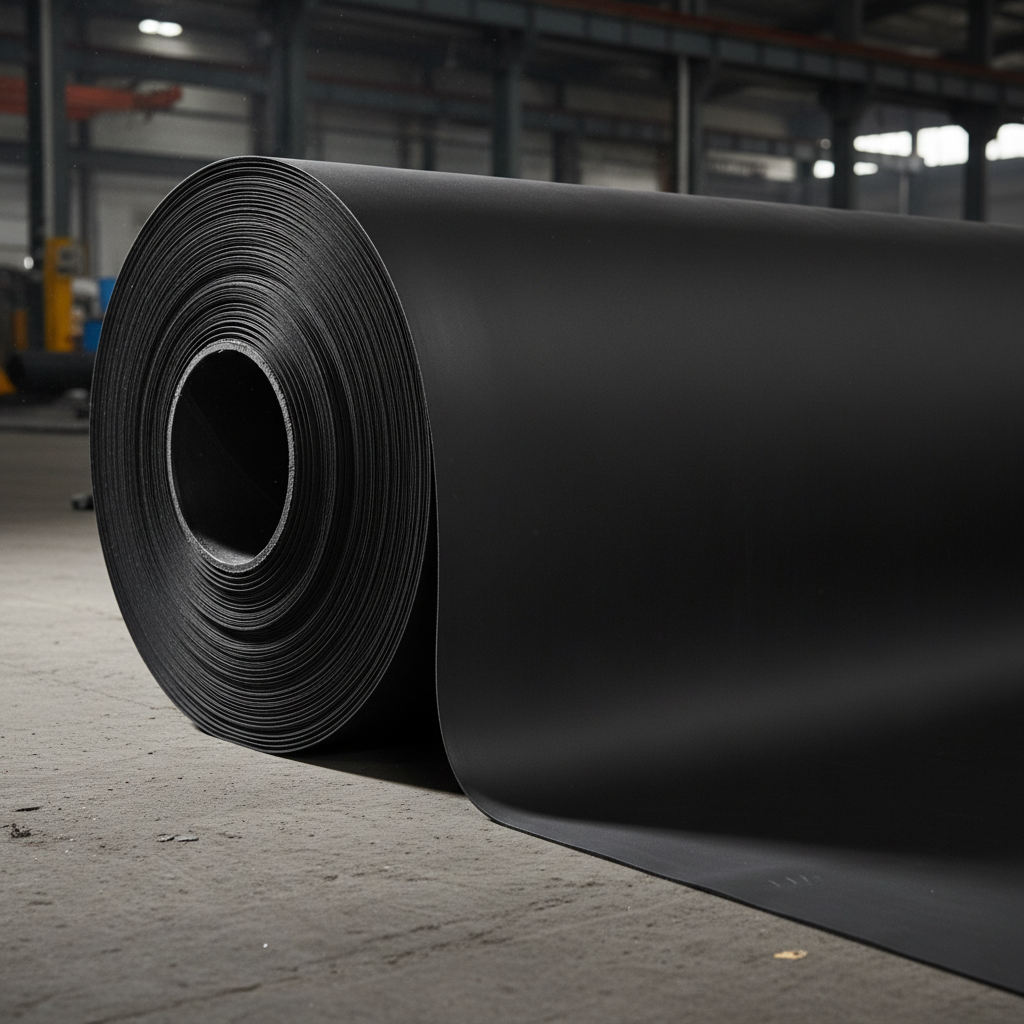

Anti-Static Rubber Sheet – Professional ESD Protection Matting
Industrial-grade anti-static rubber sheeting engineered to IEC 61340 standards for electrostatic discharge (ESD) protection. Our conductive SBR rubber safely dissipates static charges, protecting sensitive electronic components worth thousands of pounds from catastrophic ESD damage.
Used by electronics manufacturers, PCB assembly facilities, data centres, and cleanroom environments across the UK. Surface resistivity of 10⁵–10⁸ Ω ensures reliable charge dissipation without the shock hazard of fully conductive materials.
✓ IEC 61340 Compliant · ✓ ANSI/ESD S20.20 Compatible · ✓ Free UK Delivery · ✓ Cut to Your Length
Technical Specifications (2026 Updated)
| Property | Specification | Test Standard |
|---|---|---|

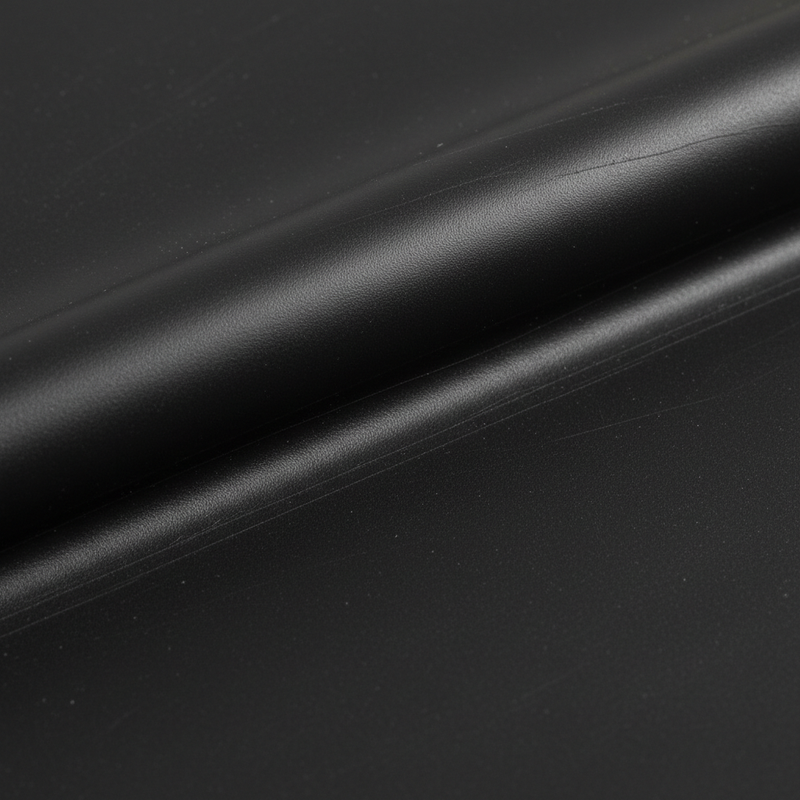

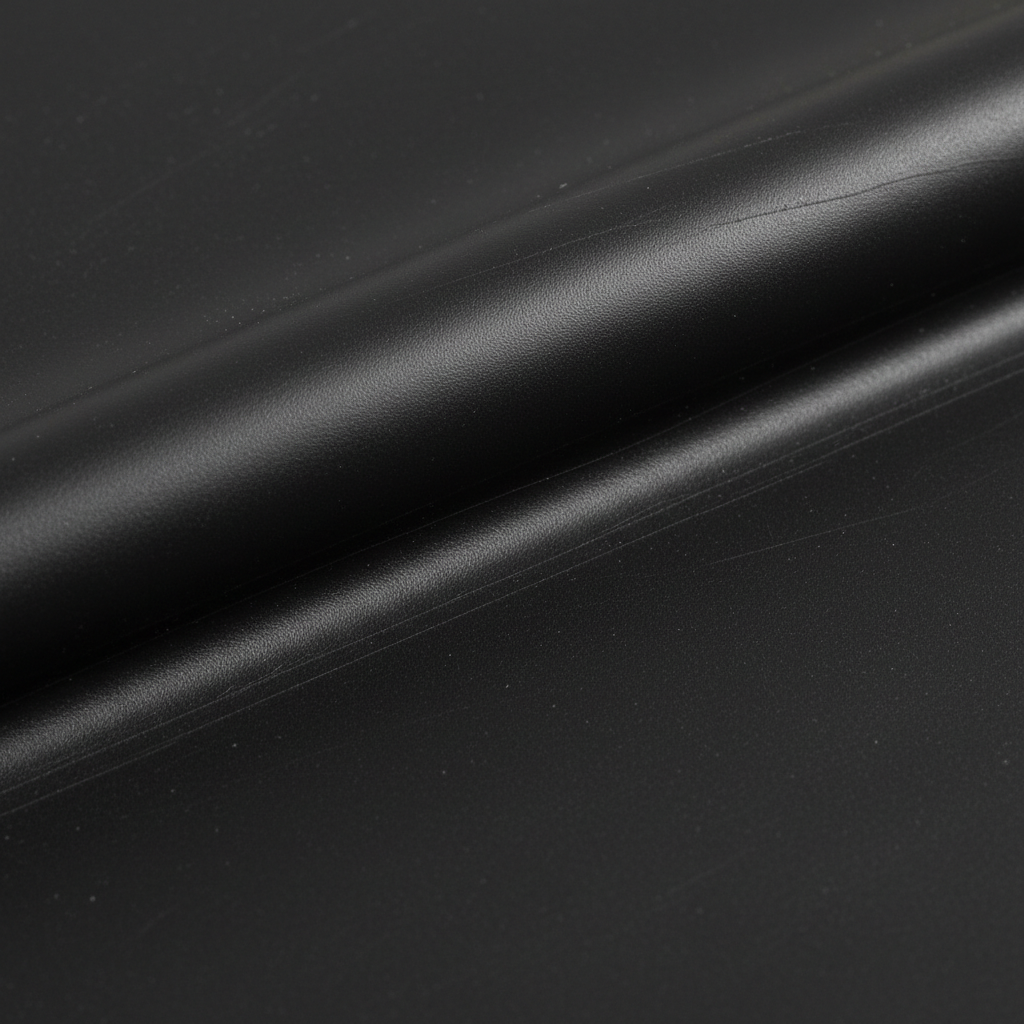

| Material Composition | Carbon-loaded SBR Rubber Compound | — |
| Surface Resistance | 10⁵ to 10⁸ Ohms (Static Dissipative) | IEC 61340-2-3 |
| Volume Resistance | 10⁴ to 10⁹ Ohms | IEC 61340-2-3 |
| Charge Decay Time | < 2 seconds to 10% of initial | IEC 61340-2-1 |
| Thickness Options | 3mm, 5mm, 6mm | — |
| Roll Width | 1200mm (1.2 metres) | — |
| Temperature Range | -20°C to +70°C | — |
| Colour | Black (carbon-loaded) | — |
| Grounding Requirement | Earth bonding point required | EN 61340-5-1 |
Understanding ESD Protection Levels
The static dissipative classification (10⁵–10⁸ Ω surface resistance) represents the optimal balance for electronics handling:
|
Insulative >10¹² Ω |
⚠️ Generates and holds static – damages components |
|
Static Dissipative 10⁵–10¹¹ Ω |
✓ IDEAL – Slowly drains charge, safe discharge rate |
|
Conductive <10⁵ Ω |
⚡ Rapid discharge – shock hazard, may damage MOS devices |
Anti-Static Mat Comparison: Our Product vs Alternatives
| Feature | Our ESD Rubber | Generic ESD Mats | Vinyl ESD Tiles |
|---|---|---|---|
| Surface Resistance | 10⁵–10⁸ Ω | 10⁶–10⁹ Ω | 10⁶–10⁸ Ω |
| IEC 61340 Certified | ✓ Yes | Varies | Some |
| Durability (Years) | 10+ years | 3-5 years | 5-7 years |
| Cut to Length | ✓ Yes | Fixed sizes | Tile format |
| Anti-Fatigue | ✓ Yes | Limited | ✗ No |
| Free UK Delivery | ✓ Yes | Varies | Often extra |
| Price per m² | From £70 | £80-120 | £60-100 |
Applications & Industries

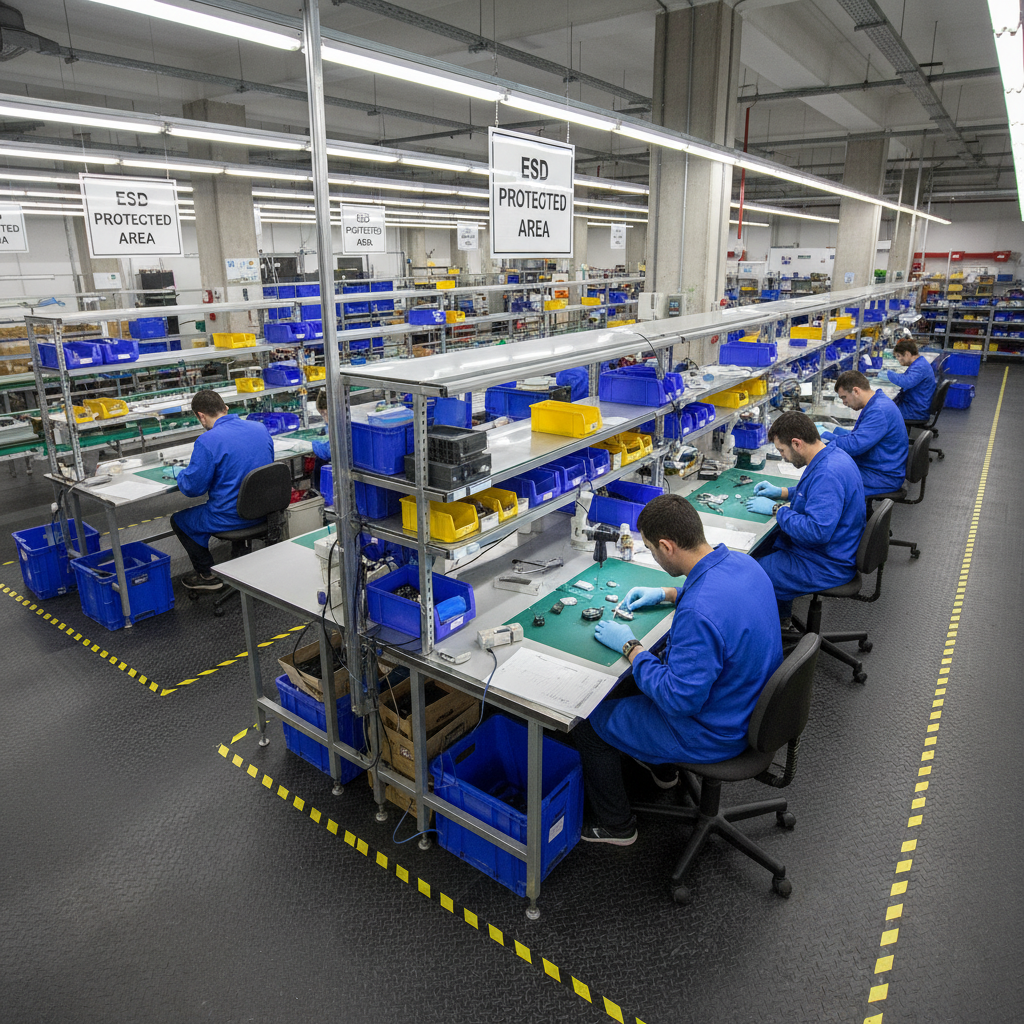

Electronics Manufacturing
- PCB assembly lines
- SMT placement areas
- Component testing stations
- Quality control benches

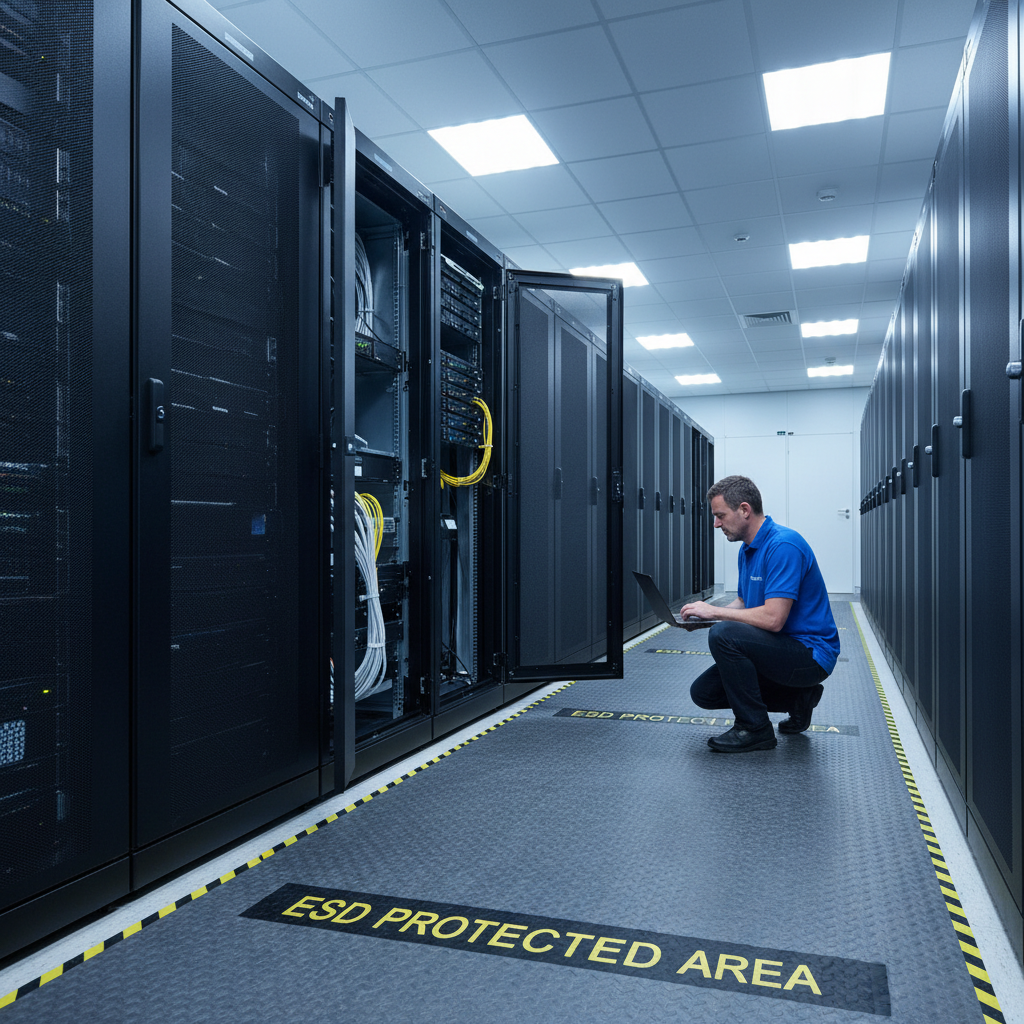

Data Centres & IT
- Server room flooring
- Network equipment areas
- Hardware repair benches
- IT asset handling zones

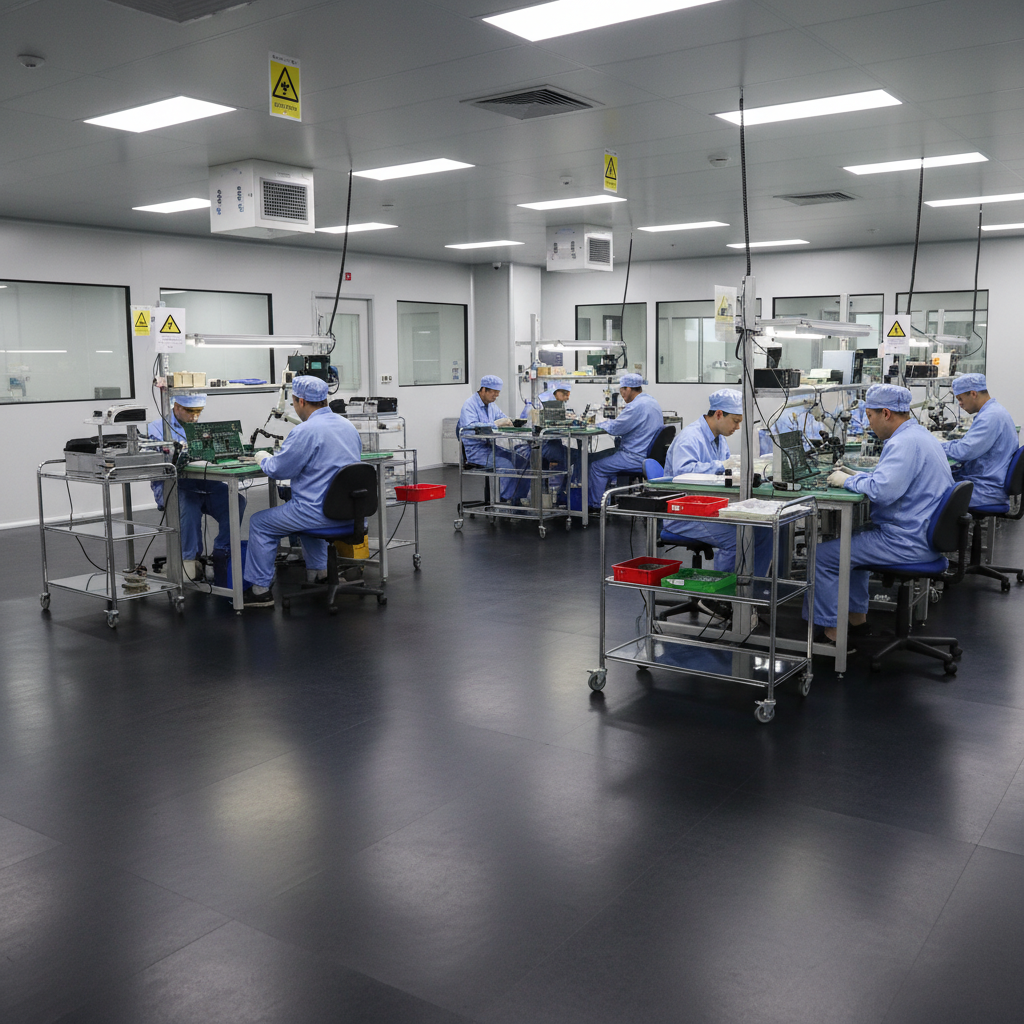

Cleanroom & Laboratory
- ISO Class 5-8 cleanrooms
- EPA (ESD Protected Areas)
- Semiconductor facilities
- Medical device assembly

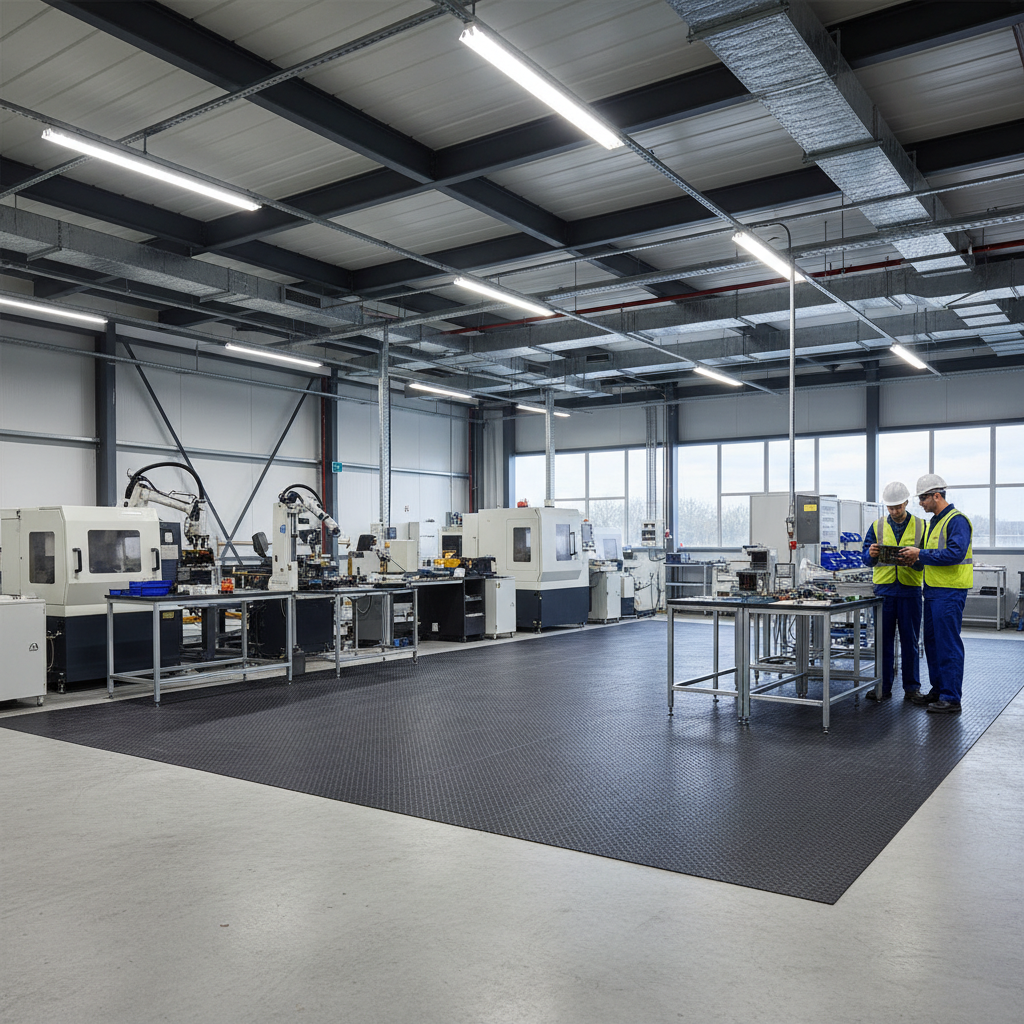

Industrial & Defence
- Aerospace electronics
- Defence manufacturing
- Automotive ECU assembly
- Munitions handling
Installation & Grounding Guide
For effective ESD protection, the anti-static mat must be earthed via a grounding point:
- Surface Preparation: Clean substrate, ensure dry and level surface
- Install Grounding: Attach copper tape or grounding stud to mat surface
- Earth Connection: Connect to building earth via 1MΩ resistor (personnel safety)
- Wrist Strap Integration: Install common point ground for operator wrist straps
- Testing: Verify surface resistance monthly using megohmmeter (IEC 61340-2-3)
Note: Without proper grounding, anti-static properties will not function. We recommend professional installation for critical EPA areas.
Why Choose Our Anti-Static Rubber Sheet?
- 🏭 British Supplier: Fast UK delivery, no import delays
- 📏 Cut to Length: Order exact metres needed, reduce waste
- 📋 IEC 61340 Compliant: Meets international ESD control standards
- 🔧 Durable SBR Construction: 10+ year lifespan with proper maintenance
- 💰 Competitive Pricing: Direct from manufacturer, no middleman markup
- 🚚 Free UK Delivery: All orders shipped free to UK mainland
Thickness Selection Guide
| Thickness | Best For | Price/Metre |
|---|---|---|
| 3mm | Workbench matting, light-duty benchtop ESD protection | £85.00 |
| 5mm | Standard floor matting, assembly lines, moderate traffic | £125.00 |
| 6mm | Heavy-duty floor application, forklift-rated areas, long-term installations | £155.00 |
Frequently Asked Questions
What's the difference between anti-static and conductive rubber?
Anti-static (static dissipative) rubber has surface resistance of 10⁵–10¹¹ Ω, providing slow, safe charge dissipation. Conductive rubber (<10⁵ Ω) discharges rapidly, which can damage sensitive MOS/CMOS components and poses shock risk. For electronics protection, static dissipative is preferred.
Do I need to ground anti-static rubber matting?
Yes, absolutely. Without an earth connection, the mat cannot dissipate static charge. Connect to building earth via a 1MΩ limiting resistor. This resistor protects personnel from shock if they contact live equipment while grounded.
Can this be used for a full ESD Protected Area (EPA)?
Yes. When properly grounded and combined with wrist straps, heel grounders, and ionisation where needed, our anti-static rubber meets EN 61340-5-1 requirements for EPA floor covering. We recommend surface resistance testing at commissioning and monthly thereafter.
What maintenance is required?
Clean regularly with ESD-safe floor cleaner (avoid silicone-based products which increase surface resistance). Test surface resistance quarterly using a megohmmeter per IEC 61340-2-3. Replace when resistance exceeds 10⁹ Ω consistently.
Is this suitable for server rooms and data centres?
Ideal for server rooms. The static dissipative properties prevent ESD damage to sensitive IT equipment while the rubber provides comfort for operators and noise dampening. Complies with ASHRAE and TIA-942 data centre guidelines.
Related ESD Protection Products
Complete your ESD Protected Area with:
- Industrial Rubber Sheeting – General purpose options
- Anti-Fatigue ESD Mats – Comfort + static protection
- Coverage Calculator – Calculate how much you need
